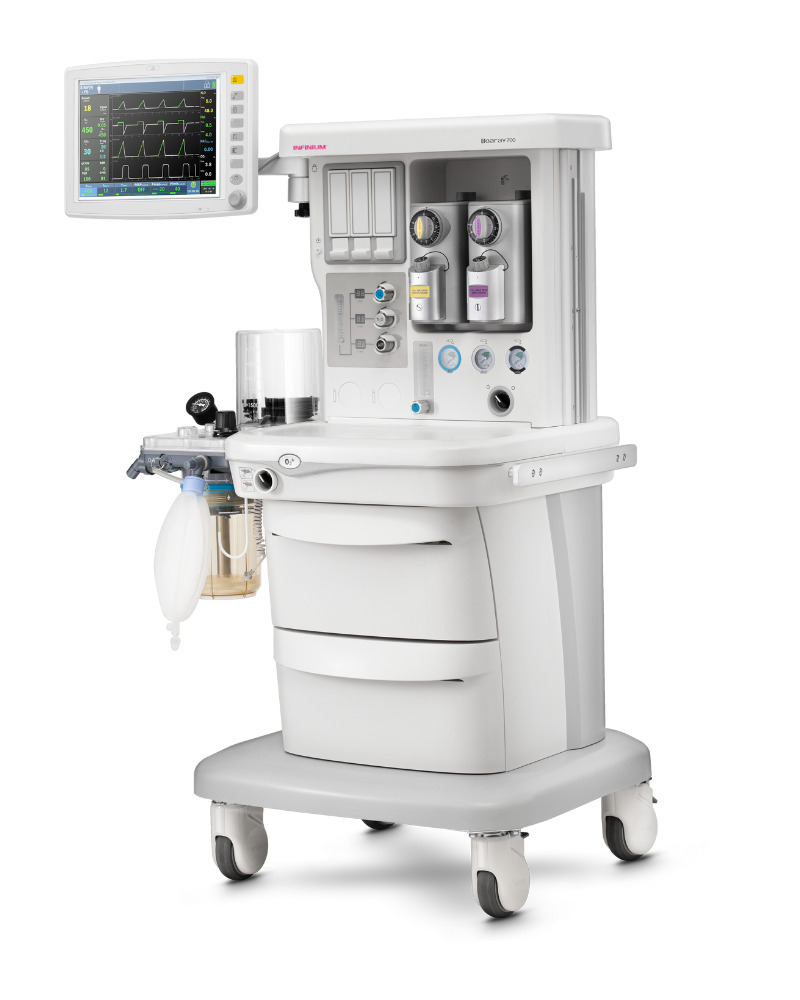

Technical Specifications

System Dimensions and Weight

• Dimensions (HxWxD):  1450mm×1000mm×1330mm
• Weight:  108 kg (Without vaporizer and cylinder)
• Top Shelf:  Weight limit 34 kg, Width x Depth 578×360 mm
• Work Surface:  Dimensions (HxWxD) 827×557×311 mm
• Drawers (2): (Internal Dimensions HxWxD) 150×298×348 mm
• Casters w/Breaks (4):  125 mm diameter

Ventilation Specifications

• Modes of Ventilation: VCV, PCV, PRVC, SIMV(V)+PS, SIMV(P)+PS, CPAP/PSV, Manual, Standby
• Compensation: Circuit gas leakage compensation and automatic compliance compensation
• Patient Types: Adult, Pediatric, Infant
• System Language:  English, Spanish, Italian
• Tidal Volume Pediatric/Infant: 10 ~ 300ml
• Tidal Volume Adult: 100 ~ 1500ml (increments of 5 mL)
• Pinsp: 5 ~ 70 cmH2O (increments of 1 cmH2O)
• Plimit: 5 ~ 100 cmH2O (increments of 1 cmH2O)
• Frequency in SIMV Mode: 1 ~ 40 bpm
• Frequency in Other Modes:  Other modes: 4 ~ 100 bpm (increments of 1 bpm)
• I:E 4:1 ~ 1:10 (increments of 0.5)
• Tpause:  OFF, 5% ~ 50% (increments of 5%)
• Ti:  0.1 ~ 10 s (increments of 0.1s)
• Flow Trigger:  1 ~ 15 L/min (increments of 1 L/min)
• Psupp:  5 ~ 60 cmH2O (increments of 1 cmH2O)
• Integrated Positive End Expiratory Pressure (PEEP):  OFF, 4 ~ 30 cmH2O (increments of 1 cmH2O)
• Driving Pressure:  280 kPa to 600 kPa
• Peak Gas Flow: 120 L/min + Fresh Gas Flow

Ventilation Monitoring Parameters

• Minute Volume: 0 ~ 60 L/min
• Tidal Volume:  0 ~ 2500 ml
• Inspired O2: (FiO2) 21% ~ 100%
• Ppeak: 0 ~ 100 cmH2O
• Pmean: 0 ~ 100 cmH2O
• Pplate: 0 ~ 100 cmH2O
• I:E: 4:1 ~ 1:10
• Rate: 0 ~100 bpm
• Freqspont: 0 ~ 99 bpm
• PEEP: 0 ~ 70 cmH2O
• Resistance (R): 0 ~ 200 cmH2O/(L/s)
• Compliance (C): 0 ~ 200 ml/ cmH2O

Ventilation Control Accuracy

• Volume Delivery < 100 ml:   ± 20 ml
• Volume Delivery ≥100 ml:   ± 20 ml or ± 15% of the set value, whichever is greater
• Pressure Delivery: ± 2.0 cmH2O or ± 10% of the set value, whichever is greater
• PEEP Delivery: ± 2.0 cmH2O or ±10% of the set value, whichever is greater
• Flow Trigger: ± 1.0 L/min or ±15% of the set value, whichever is greater

Monitoring & Accuracy

• Volume Monitoring< 100 ml:  ± 20 ml
• Volume Monitoring≥100 ml:  ± 20 ml or ± 15% of the reading, whichever is greater
• Pressure Monitoring: ± 2.0 cmH2O or ± 10% of the reading, whichever is greater
• PEEP Monitoring: ± 2.0 cmH2O or ± 10% of the reading, whichever is greater
• MV Monitoring: 1L/min or ±15% of the reading, whichever is greater
• Trend Graph: Continuous trend information for the latest 24 hours
• Log:  500 events storage, first in first out

Alarm Settings

• Tidal Volume:
  • High: 20 ~ 1500 mL, OFF
  • Low: OFF, 10 ~ 1500 mL
• Minute Volume:
  • High: 1 ~ 40 L/min, OFF
  • Low: OFF, 0 ~ 40 L/min
• Airway Pressure:
  • High: 1 ~ 100 cmH2O
  • Low:  0 ~ 99 cmH2O
• Frequency:
  • High: 1 ~ 100BPM
  • Low: 0 ~ 99BPM
• FiO2:
  • High: 21% ~ 100%,OFF
  • Low: OFF, 18% ~ 99%
• Apnea Alarm: 10 ~ 40s
• Sustained Airway Pressure Alarm: 15s
• Negative Pressure Aarm:  Paw < -10 cmH2O
• Alarm Silence Countdown Timer: 120 to 0 seconds

Ventilator Components

• Flow Sensor
  • Type: Variable orifice flow sensor
  • Position: Inspiratory and expiratory port
• Oxygen Sensor
  • Type: Chemical
  • FiO2 Displayed:  21% to 100%
  • Accuracy:  ± (volume fraction of 2.5 % +2.5 % gas level)
  • Response time: ≤15 seconds
• Ventilator Screen
• Display Type: Color TFT touch screen, rotatable
  • Display Size: 15 inch
  • Resolution:  1024 x 768
  • Display Parameter: All setting and alarm parameters (including Breath rate, I/E ratio, Tidal volume, Minute volume, PEEP, MEAN, PEAK, PLAT, and O2 concentration, EtCO2, N2O, Aesthesia gas concentration)
  • Display Waveform: P-T, F-T, V-T, CO2-T
  • Loop: P-V, F-V and F-P
  • Timer: On screen timer
• Communication Port: RS-232C connector x2, VGA x1

Vaporizer

• Vaporizer Brand:  Drager or Penlon Sigma Delta
• Agent Compatibility:   Halothane, Enflurane, Isoflurane, Sevoflurane
• Position: Standard 2
• Mounting Mode:  Selectatec®, with interlocking function
• Fill Method: Key fill, Pour fill, Quick fill

Monitoring Modules

• MainStream CO2 Module: (Masimo IRMA)
  • Displayed Numeric:  EtCO2, FiCO2
  • Measurement Range: 0 ~ 99 mmHg
  • Accuracy: ± (0.3 vol%+ 4% of reading)
  • Response Time: ＜1 second  Waveform / Loop CO2-time
  • EtCO2:
    • High Alarm Limit:  1 ~ 100cmH2O
    • Low Alarm Limit: 0 ~ 99cmH2O
• SideStream CO2 Module: (Masimo ISA)
  • Displayed Numeric: EtCO2, FiCO2
  • Measurement Range: 0 ~ 99 mmHg
  • Accuracy: 0 to 15 vol%: ±2 (0.2 vol%+2% of reading) 15 to 25 vol% :unspecified
  • Response Time: ＜3 seconds (with 2 m sampling line)  Waveform / Loop CO2-time
  • EtCO2
    • High Alarm Limit:  1 ~ 100cmH2O
    • Low Alarm Limit: 0 ~ 99cmH2O
• Multi-gas Module: (Masimo IRMA)
  • Measurement Mode: Main-stream
  • Monitor Gases:  CO2, N2O, Halothane, Enflurane, Isoflurane, Sevoflurane, Desflurane, MAC.
  • Warm-up Time:  <20 sec (concentrations are reported and the automatic agent identification is running within 20 seconds).
  • Accuracy:
    • CO2:  ±(0.3 vol%+ 4% of reading)
    • N2O:  ±(2 vol%+ 5% of reading)
    • HAL, ENF, ISO, SEV, DES:  ±(0.2 vol%+ 10% of reading)
• SPO2 Module
  • Range: 70% ~ 100%
  • Resolution: 1%
  • Absolute Accuracy: ±2%
  • PR Range: 30～250bpm
  • PR Resolution:  1bpm
  • PR Accuracy: 2bpm

Electrical Specifications Power & Battery Backup

• Power Input:  110 ~ 240 Vac, 50/60 Hz
• Auxiliary Electrical Outlet:  Up to 3 outlets (2A for each)
• Battery Backup:
  • 60 min for 1 piece battery (powered by new fully-charged batteries with 25℃ ambient temperature)
  • Built-in Li-ion battery, 11.1 VDC, 7800 mAh
• Safety Features:  In case of electricity and battery failure, manual ventilation, gas delivery and agent delivery are possible.

Pneumatic Specifications

• ACGO (Auxiliary Common Gas Outlet)
  • Connector Size: ISO 22 mm OD and 15 mm ID
  • Pipeline Supply:
    • Gas Type: O2, N2O, Air
    • Pipeline Input Range: 280 to 600 kPa
    • Pipeline Connection:  NIST
  • Pipeline Supply Pressure Gauge
    • Display Type: Mechanical
    • Range: 0 to 1MPa
    • Accuracy: ± (4% of the full scale reading + 8% of the actual reading)
  • Cylinder Supply:
    • Cylinder Type: E-size Cylinder (US standard or UK standard)
    • O2 Input Range: 400 to 450 MPa
    • N2O Input range: 400 to 450 MPa
    • Cylinder Connection: Pin-Index Safety System (PISS)
    • Yoke Configuration: O2, N2O
  • Cylinder Supply Pressure Gauge
    • Display: Type: Mechanical
    • O2 Range: 0 to 25 MPa
    • N2O Range: 0 to 25 MPa
    • Accuracy: ± (4% of the full scale reading + 8% of the actual reading)
  • O2 Control
    • Method: N2O shut off with loss of O2 pressure
    • O2 Flush: 25 ~ 75 L/min
  • O2-N2O Link System
    • Type: Mechanical
    • Range: O2 concentration not lower than 21%
  • Auxiliary: O2: Flowmeter
    • Range: 0 ~ 15 L/min
    • Indicator:  Flow tube
  • Electronic Flow Meter
    • O2 Flow Range: 0~ 10 L/min
    • Air Flow Range: 0~ 10 L/min
    • N2O Flow Range: 0~ 10 L/min
    • Accuracy:  Between -10% and +10% of the indicated value (under 20℃ and 101.3 kPa, for flow between 10% and 100% of full scale ±200mL/min(for flow below 10% of full scale)

Environmental Specifications

• Temperature
  • Operation: 10 ~ 40℃
  • Storage and Transport: -20 ~ 55℃
• Relative Humidity (non-condensing)
  • Operation: ≤ 80% R.H.
  • Storage and Transport: ≤ 93% R.H.
• Atmospheric Pressure
  • Operation: 70 ~ 106 kPa
  • Storage and Transport: 50 ~ 106 kPa
• Electromagnetic Compatibility
  • Immunity Complies with all requirements of IEC 60601-1-2
  • Emission Complies with all requirements of IEC 60601-1-2

Breathing System Specification

• Material: PC or PPSU(optional)
• CO2 Absorber
  • Absorber Capacity: 1500 mL
• Breathing Circuit Parameters
  • Compliance:  0.87 mL/100Pa (bag mode)  Automatically compensates for compression losses within the breathing circuit in mechanical mode
  • Expiration Resistance: < 0.6 kPa @30 L/min
  • Inspiration Resistance: < 0.6 kPa @30 L/min
• System Pressure Gauge
  • Range: -20 ~ 100 cmH2O
  • Accuracy: ± (2% of the full scale reading + 5% of the actual reading)
• Ports and Connector
  • Exhalation, Inhalation Manual Bag Port:  22 mm OD /15 mm ID conical
• APL Valve
  • Range: 2 ~ 70 cmH2O or 2 ~ 90 cmH2O(optional)  Tactile knob indication at above 30 cmH2O
  • Accuracy: ± 10 cmH2O or ± 15% of the setting value, which is greater

Anesthetic Gas Scavenging System (AGSS)

• Size: (H x W x D) 480 x 134 x 95 mm
• Type of Disposal System:  Low Flow Active AGSS
• Applicable Standard: ISO 80601-2-13
• Pump Rate: 40 ~ 50 L/min
• Connector of the Disposal System:  ISO 9170-2
